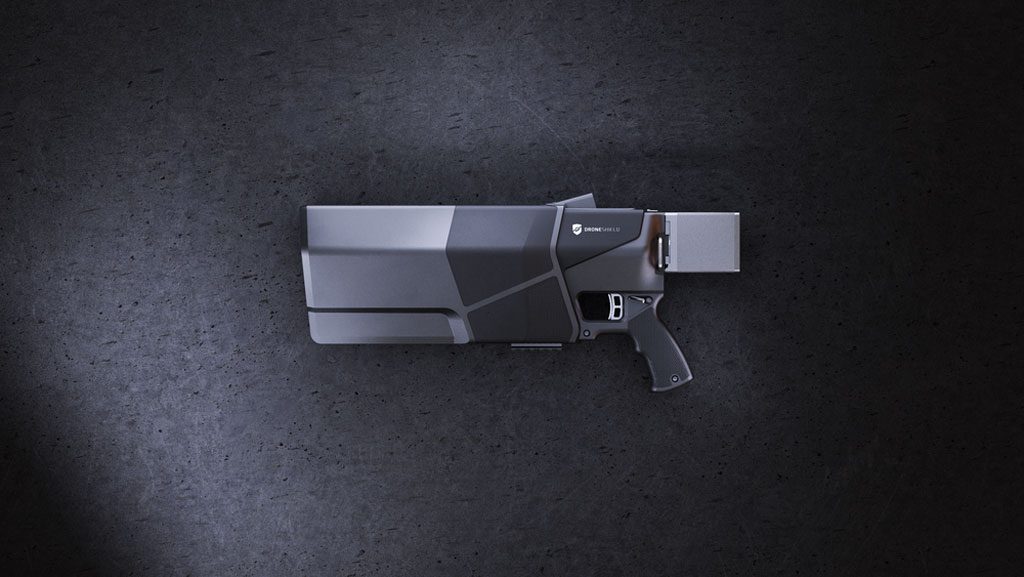

DroneGun MkIII

Lightweight, Compact Drone Countermeasure

The DroneGun MkIII is a compact, lightweight drone countermeasure designed for one hand operation. The product provides a safe countermeasure against a wide range of drone models. It allows for a controlled management of drone payload such as explosives, with no damage to common drones models or surrounding environment due to the drones generally responding via a vertical controlled landing on the spot, or returning back to the starting point (assisting to track the operator), with an immediate cease of video back to the drone pilot.

RF disruption activation will also interfere with any live video streaming (FPV) back to the remote controller halting the collection of video footage and intelligence by the drone operator.

BENEFITS OF DRONEGUN MKIII DRONE COUNTERMEASURE:

  • Lightweight: 1.95kg total device weight including battery
  • Effective coverage: Allows for an up to 500m coverage, in a wide range of environmental conditions
  • Fully Integrated: Battery powered hand-gun style solution, one person operation
  • Easy to use: minimal technical training for set up or use required, highly portable design
  • Immediate video cease: immediately ceases video transmission back to the drone operator
  • Enables investigation: drone remains intact and available for forensic investigation
  • Additional Frequency Bands: Option to disrupt multiple RF frequency bands simultaneously (433MHz, 915MHz, 2.4GHz & 5.8GHz)
  • GNSS Disruption: Optional GNSS disruption capablity (GPS, GLONASS, BeiDou, Galileo)
  • Protected: Unit supplied packed in rugged carry case

SPECIFICATIONS:

DroneGun MkIII Specifications
Voltage: 10.8VDC
Effective Range: 500m (Visible Line of Sight)
Rifle Weight: 1.95kg (4.3 lbs) (including battery)
User Feedback: Visual LEDs
Colour: Black, Desert Sand

Effective Frequencies

433MHz (optional activation)
915MHz (optional activation)
GNSS L2 & GNSS L1 (optional activation)
2.4GHz ISM
5.8GHz ISM

Battery Specifications
Rechargeable Lithium-Ion Battery
NATO-standard military grade battery (common use)
Quick release and reload battery operation
Start-up Time: < 3 secs
Operation Time: 1 hr+ active disruption, 8 hr+ standby
Pass through charger available for continued use

Environment
Operating temperature: -20 ºC to +55 °C (-4ºF to +131ºF)
Designed to IP55

Warranty
12 months from date of shipment

Shipping
Ships in a Rugged Carry Case (IP67)
Dimensions: 629mm x 393mm x 209mm (24.76“ x 15.46“ x 8.24“)
Total Shipped Weight: 6.5kg (14.33 lbs) – including carry case
HS Code: 8543.70.9090

DroneGun MkIII has not been authorized as required by the United States Federal Communications Commission (“FCC”). This device is not, and may not be, offered for sale or lease, or sold or leased, in the United States, other than to the United States government, its agencies, and its properly delegated representatives, until such authorization is obtained. The use of DroneGun MkIII in the United States by other persons or entities, including, in certain circumstances, state or local government agencies, is prohibited by federal law. Laws limiting the availability of DroneGun MkIII to certain types of users may apply in other jurisdictions, and any sales will be conducted only in compliance with the applicable laws.

DroneGun MkIII affects only frequencies at 2.4Ghz, 5.8Ghz,433Mhz, 915Mhz and GPS/Glonass (optionally). Emergency broadcasts, cellphone communication and other dedicated channels will not be affected.
